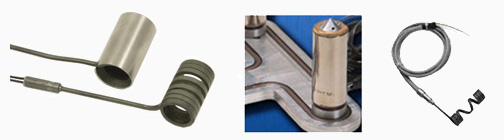

Cable Coil/Hot Runner Heaters
|
Cable heaters, also called coil heaters or hot runner heaters are small diameter heating cable fully annealed that can be formed into your desired coil configuration. They can be formed into a compact nozzle heater for use on a plastic injection molding equipment supplying a full 360 degree of heat with optional distributed wattage. A straight cable can snake through a sealing bar in packaging equipment. A flat spiral configuration is used in semiconductor manufacturing while a star wound cable is used in air and liquid heating.
|
Performance Features:
- Continuous operating temperatures to 650 °C
- Internal thermocouples and no heat sections can be added on most sizes.
- High ductility allows the heater to be cold formed into almost any shape.
- Dimensions from 0.040" (1 MM) to 0.188" (4.8 MM) diameter, the cable
heater packs a lot of heat into a tiny space.
- Cable heaters can operate in unusual environments, including cryogenic and
sub-freezing temperatures, high vacuum, and gaseous and liquid immersion conditions.
- Sheath material: Inconel or Stainless Steel
|
|
|
Application:
- Plastic injection molding nozzle
- Semiconductor manufacturing and water processing
- Medical, analytical and scientific instruments
- Cast-in Heaters
- Laminating and printing presses
- Air Heating
- Heating in a vacuum environment
|
|
|
Cable Coil Heater Brochure:
|
|
|
